Vogel's Motion support EFW 8325 is suitable for flat screens from 32 to 50 inches. The support has a maximum rotation range of 90 degrees (45 degrees to both sides) and is equipped with the patented Cable Inlay System (CIS®) that conceals all cables
If you want to experience the ultimate cinema feeling, sit straight in front of your TV instead of watching from a certain angle. The Vogel's 8000 Motion series allows you to rotate your TV for the best viewing position. You can rotate the screen 45 degrees to either side. Thanks to the patented Smart Movement Mechanism (SMM®), you can rotate even the largest screen with one finger. The installation was done in no time. The support is even equipped with a spirit level to ensure that it hangs perfectly straight. The smart AutoLock® keeps the screen firmly in place so you don't have to worry about the safety of your precious TV. Create your own entertainment center and combine this wall mount with the column system and the audio/DVD multi-carrier of the 8000 series.

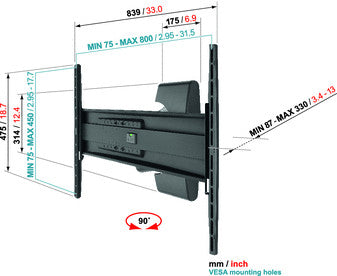

Specifications
| Standard color: |
|
| Turn: |
90° |
| Min. screen size: |
32" |
| Max. screen size: |
50" |
| Minimum weight: |
0 kg |
| Max. weight: |
45kg |
| Number of pivot points: |
2 |
| Min. distance to the wall: |
87mm |
| CIS® : |
Present
|
| AdvanCIS™: |
-
|
| SPS™ (Screen Protection System) : |
-
|
| SMM™ (Smart Movement Mechanism) : |
Present
|
| TÜV certificate number: |
60025996 |
| Mobile: |
-
|
| Remotely controlled: |
-
|
| Adjustable depth: |
-
|
| Interface Width: |
830mm |
| Interface height: |
475mm |
| USPs: |
Autolock® |
|
Integrated spirit level |
|
VESA mounting holes: 75x75mm to 800x450mm. |
|
Motion - 90º turning circle. |
|
Extra - Screen Protection System (SPS®) |
|
Extra - Smart Mo |
